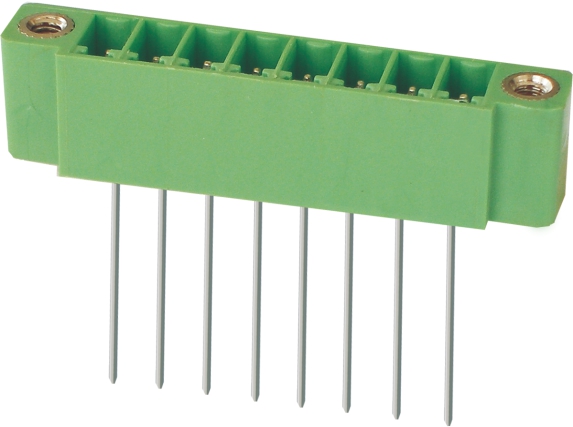

PTB350S-14
300V/8A/3.50mm

Rated voltage:300 V      Rated vurrent:8 A

Pitch:3.50 mm

Poles
2-20
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (B)(V) 300
Rated Current (B)(A) 8
Rated Voltage (C)(V)
Rated Current (C)(A)
Rated Voltage (D)(V)
Rated Current (D)(A)

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 160
Rated Voltage (V) 160
Rated Voltage (V) 320
Rated Surge Voltage  (KV) 2.5
Rated Surge Voltage  (KV) 2.5
Rated Surge Voltage  (KV) 2.5
Rated Current (A) 8

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data

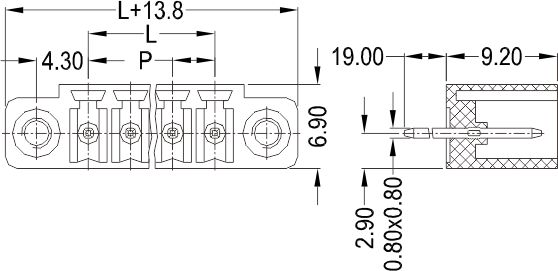

Hole Diameter  ∅ 1.3
Pin size ∅ 0.8*0.8
