Rated voltage:300 V Rated vurrent:15 A

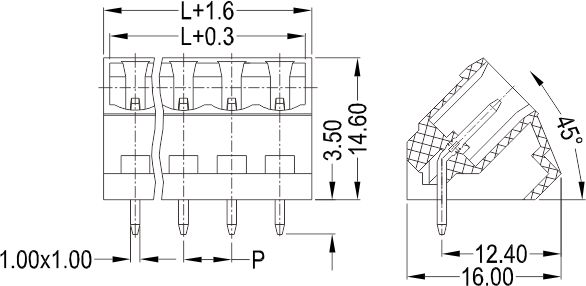

Pitch:5.00 mm
Rated Voltage (B)(V) | 300 |
Rated Current (B)(A) | 15 |
Rated Voltage (C)(V) | |
Rated Current (C)(A) | |
Rated Voltage (D)(V) | |
Rated Current (D)(A) |
Material Grop | Ⅰ |
Overvoltage Category (Ⅲ/3)(KV) | Ⅲ |
Overvoltage Category(Ⅲ/3)(KV) | Ⅲ |
Overvoltage Category(Ⅱ/2)(KV) | Ⅱ |
Contamination Class | 3 |
Contamination Class | 2 |
Contamination Class | 2 |
Rated Voltage (V) | 250 |
Rated Voltage (V) | 320 |
Rated Voltage (V) | 400 |
Rated Surge Voltage (KV) | 4 |
Rated Surge Voltage (KV) | 4 |
Rated Surge Voltage (KV) | 4 |
Rated Current (A) | 15 |
Insulation Material | PA |
Inflammability Class | UL94,V-0 |
Hole Diameter ∅ | 1.6 |
Pin size ∅ | 1.0*1.0 |
