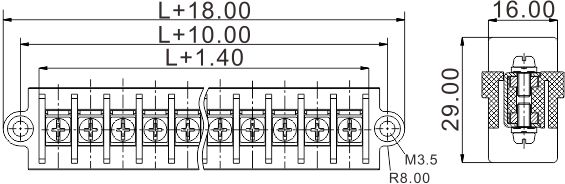

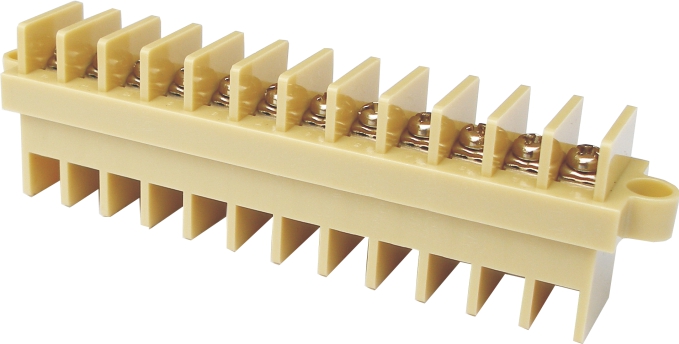

BTB751-00
660V/17.5A/7.50mm

Rated Voltage: 660V   Rated Current: 17.5A

Wire Range: 2-20 AWG

Pitch: 7.5mm

Poles
2-20
Technical data
Authentication
Business data
Download
Attachments
Related products

UL Technical Data

Rated Voltage (V) 660
Overvoltage Category B
Rated Current(A) 17.5
Wire Range (AWG) 16-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Connectiong Capacity (mm2) 1.5
Rated Current(A) 17.5

Material

Insulation Material PC
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) 7
Screw (M) 3
Torque  (lbf.in) 7
Hole Diameter ∅
Pin size
