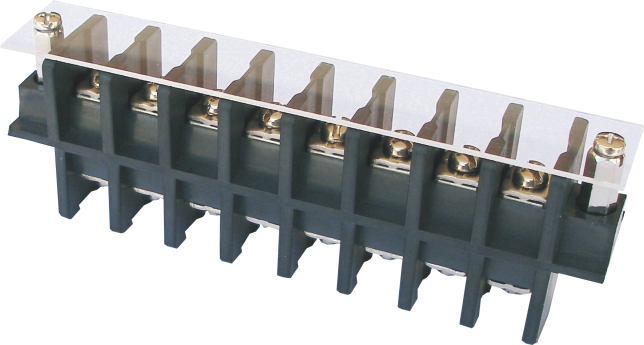

BTB760-00
600V/30A/13mm

Rated Voltage: 600V         Rated Current :30A

Wire Range: 2-10 AWG

Pitch: 13.00mm

Poles
2-10
Technical data
Authentication
Business data
Download
Attachments
Related products

UL Technical Data

Rated Voltage (V) 600
Overvoltage Category B
Rated Current(A) 30
Wire Range (AWG) 10-18

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Connectiong Capacity (mm2) 35
Rated Current(A) 30

Material

Insulation Material PBT
Inflammability Class UL94,V-0

Other Data


Stripping Length (mm) 10
Screw (M) 4
Torque  (lbf.in) 15.6
Hole Diameter ∅
Pin size


Name
Document
Download
Name
Document
Download
Multi-digit picture
2-10
