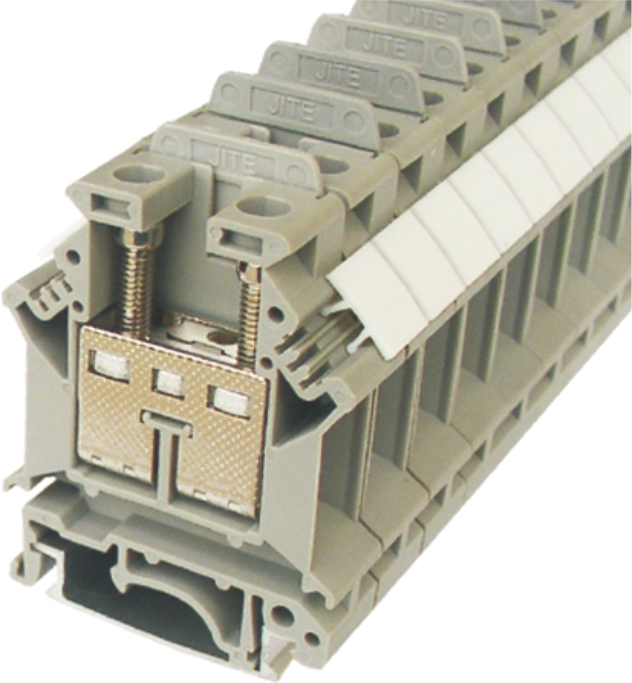

RTB425-00
600V/85A/12.20mm

Thickness : 12.20 mm     Width : 42.50 mm

Height : (JNS35/7.5, JNS35/15, JNS32) : 54.00mm / 61.50mm / 59.00mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rigid Conducto(mm2) 1.5-6
Flexible Conductor(mm2) 1.5-4
AWG 4-22
Rated Voltage (V) 600
Rated Current (A) 85
Rated Connectiong Capacity(mm2) 25
Rated Surge Voltage 8
Contamination Class 3
Overvoltage Category
Material Grop

IEC Technical Data

Rigid Conducto(mm2) 2.5-25
Flexible Conductor(mm2) 4-16
AWG 4-12
Rated Voltage (V) 800
Rated Current (A) 101

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data

Stripping Length  mm 11
Screw M 4
Torque N.m 1.5-1.8
Packing Quantity  PCS 28

Accessories:Fit Ground TB RTB425-02-01

End Cover A044-9
Fixed Bridge  A133-10-22
Insertion Bridge  -
Switch bar for 2  TB -
Separating Disk  A048-9
Partition Plate  -
Test Socket   -
Marker Strip  A055-10-5
Marker Carriers  RBJ1
Rail Stator   GD001
Rail Stator   A047-9
Rail Stator   A049-9
MountingRail   JNS35/7.5
MountingRail   JNS35/15
MountingRail   JNS32
