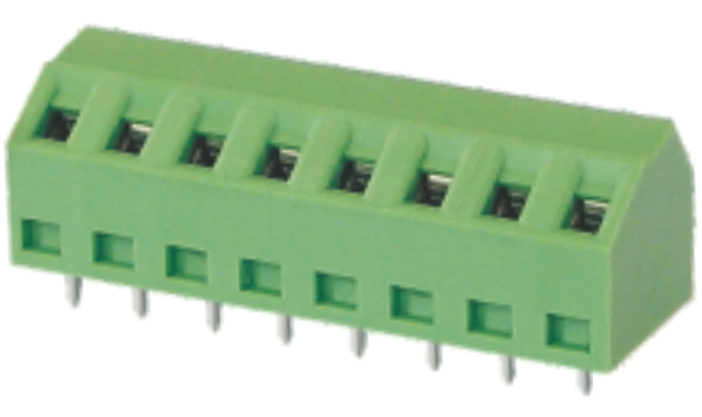

Rated voltage:300 V Rated vurrent:10 A
Wire Range :16-30 AWG

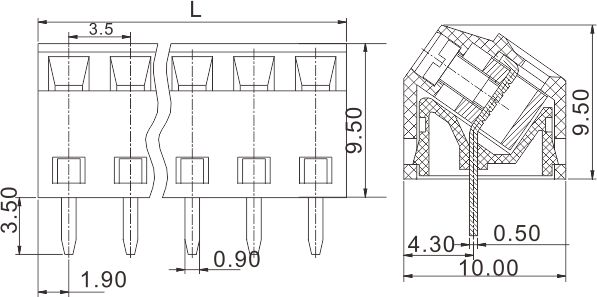

Pitch:3.50 mm
Rated Voltage (B)(V) | 300 |
Rated Current (B)(A) | 10 |
Rated Voltage (C)(V) | |
Rated Current (C)(A) | |
Rated Voltage (D)(V) | |
Rated Current (D)(A) | |
Wire Range (AWG) | 16-30 |
Material Grop | Ⅰ |
Overvoltage Category (Ⅲ/3)(KV) | Ⅲ |
Overvoltage Category(Ⅲ/3)(KV) | Ⅲ |
Overvoltage Category(Ⅱ/2)(KV) | Ⅱ |
Contamination Class | 3 |
Contamination Class | 2 |
Contamination Class | 2 |
Rated Voltage (V) | 160 |
Rated Voltage (V) | 160 |
Rated Voltage (V) | 320 |
Rated Surge Voltage (KV) | 2.5 |
Rated Surge Voltage (KV) | 2.5 |
Rated Surge Voltage (KV) | 2.5 |
Rated Connectiong Capacity(mm2) | 1.5 |
Rated Current (A) | 10 |
Insulation Material | PA |
Inflammability Class | UL94,V-0 |
Stripping Length(mm) | 5.00 |
Screw M | 2 |
Torque ( lbf.in) | 2 |
Hole Diameter (∅) | 1.3 |
Pin size (mm)(∅) | 0.9*0.5 |
