Rated voltage：300 V Rated vurrent：85 A
Wire Range ：4-20 AWG

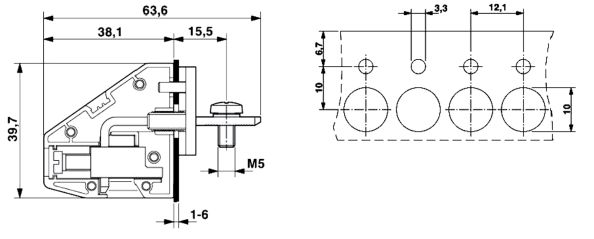

Pitch：12.10 mm
| Rated Voltage (V) | 300 |
| Rated Current (A) | 85 |
| Wire Range(AWG) | 4-20 |
| Rated Surge Voltage （KV） | 6 |
| Insulation Material | PA |
| Inflammability Class | V-0 |
| Terminal Material | Brass |
| Terminal Plating | Tin Plated |
| Screw (M) | 5 |
| Torque(lbf.in) | 4-4.5 |
| Operating | -40℃ - +105℃ |
