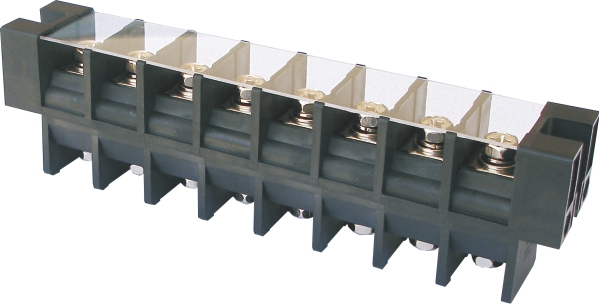

Rated Voltage :600 V Rated Current:75A
Wire Range:2-6 AWG

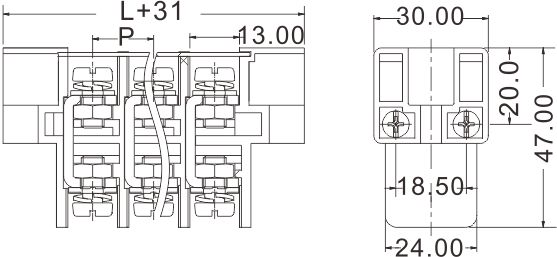

Pitch:16.00mm
| Rated Voltage (V) | 600 |
| Overvoltage Category | B |
| Rated Current(A) | 75 |
| Wire Range (AWG) | 3-10 |
| Material Grop | Ⅰ |
| Overvoltage Category (Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅱ/2)(KV) | Ⅱ |
| Contamination Class | 3 |
| Contamination Class | 2 |
| Contamination Class | 2 |
| Rated Voltage (V) | 1000 |
| Rated Voltage (V) | 1000 |
| Rated Voltage (V) | 1000 |
| Rated Surge Voltage （KV） | 6 |
| Rated Surge Voltage （KV） | 6 |
| Rated Surge Voltage （KV） | 6 |
| Rated Connectiong Capacity (mm2) | 2.5 |
| Rated Current(A) | 75 |
| Insulation Material | PBT |
| Inflammability Class | UL94,V-0 |
| Stripping Length (mm) | 7 |
| Screw (M) | 6 |
| Torque (lbf.in) | 22 |
| Hole Diameter ∅ | |
| Pin size |
