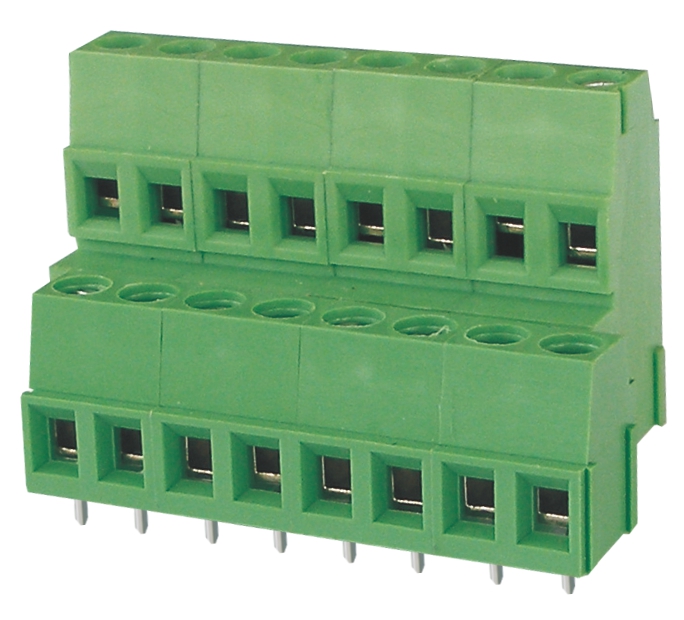

Rated voltage：300 V Rated vurrent：15 A
Wire Range ：12-26 AWG

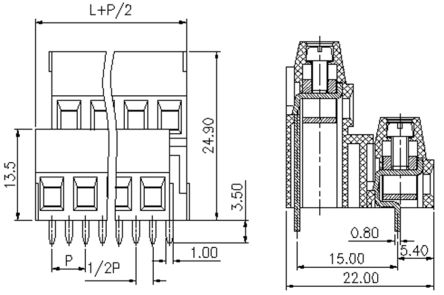

Pitch：5.00 / 5.08 mm
| Rated Voltage (B)(V) | 300 |
| Rated Current (B)(A) | 15 |
| Rated Voltage (C)(V) | |
| Rated Current (C)(A) | |
| Rated Voltage (D)(V) | |
| Rated Current (D)(A) | |
| Wire Range (AWG) | 12-26 |
| Material Grop | Ⅰ |
| Overvoltage Category (Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅱ/2)(KV) | Ⅱ |
| Contamination Class | 3 |
| Contamination Class | 2 |
| Contamination Class | 2 |
| Rated Voltage (V) | 250 |
| Rated Voltage (V) | 320 |
| Rated Voltage (V) | 630 |
| Rated Surge Voltage （KV） | 4 |
| Rated Surge Voltage （KV） | 4 |
| Rated Surge Voltage （KV） | 4 |
| Rated Connectiong Capacity(mm2) | 2.5 |
| Rated Current (A) | 15 |
| Insulation Material | PA |
| Inflammability Class | UL94,V-0 |
| Stripping Length（mm) | 7.00 |
| Screw M | 3 |
| Torque （ lbf.in） | 5 |
| Hole Diameter （∅） | 1.5 |
| Pin size （mm)(∅) | 1.0*0.8 |
